Water Purification with CarbonFiber
Water quality purification using CarbonFiber is economical and effective
method. And it is low environmental impact. Active biofilm are formed by
high bioaffinity of CarbonFiber, and its microorganisms decompose contaminants.
On the other hand, CarbonFiber activates microorganisms and gather fishes.
 |
What is CarbonFiber? |
● CarbonFiber is a “fibrous carbon substance having a fine graphite crystal
structure” which is manufactured
by carbonizing acryl fibers by a special heat treatment process. (Polyacrylonitrile
(PAN) type)
● CarbonFiber is generally said to be a “light, strong, corrosion-resistant”
advanced functional material.
It is widely used in diverse applications, taking advantage of its combination
of properties as a lightweight
materials with excellent mechanical properties, and its excellent properties
as a carbon material.
・Specific strength (tensile strength/specific weight): 10x that of steel.
・Specific modulus (tensile modulus of elasticity/specific weight): 7x
that of steel.
・Applications: Aircraft, automobiles, reinforcing material for concrete
structures, fishing rods, golf clubs, etc.
● CarbonFiber for use as a water purification materials is given a special
surface treatment to cause the fibers
to expand in water.
● CarbonFiber for water purification consists of clusters (bundles) of 12,000 ultra-fine, 7μm filaments.
Functions of CarbonFiber
|
Function of CarbonFiber |
● Pollutants in water are adsorbed on the large surface area of the CarbonFibers.
● At the same time, microorganisms in the water are attracted and fixed.
● Due to their high biocompatibility, CarbonFiber forms an active microorganism film and become a habitat for
the microorganisms.
● The microbial film sways in the water, capturing and decomposing pollutants.
→ Water purification.
● The microorganisms are activated, attracting fish and creating a habitat
for egg-laying and the growth of young
fish. → Formation of seaweed bed.
● Effects include water purification, preservation of the ecosystem, and
securing biodiversity.
|
 |
 |
When immersed in water, a water-soluble sizing agent dissolves, and the
filaments unravel and spread.
|
Pollutants are adsorbed and microorganisms are fixed on the large surface
area of CarbonFiber.
|
 |
 |
Bio film ( radical sludge)
|
Microorganism (microscope photo)
|
|

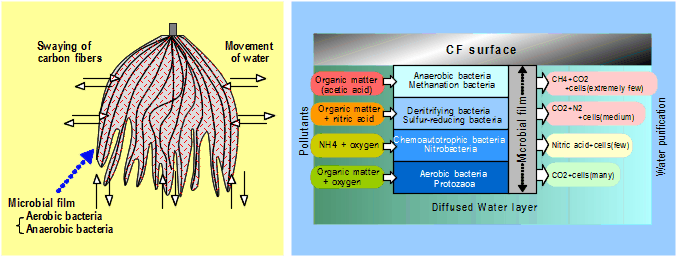

Mechanism of Water Purification |
 |
Swaying of CarbonFibers causes movement
of the water and decomposition of pollutants. |
Main nutrients and metabolism products
of microorganisms in microbial film. |
Water Purification Effect
Water quality purification using CarbonFiber is effective in improvement
of transparency in a short time, decrease
COD and BOD, and purification of TN and TP.
Removal rate of water quality purification using CarbonFiber items（％）
| items |
river |
lake |
sewage |
| biological oxygen demand (BOD) |
50〜70 |
20〜90 |
90〜95 |
| suspended solid (SS) |
50〜70 |
20〜90 |
90〜95 |
| total nitrogen (TN) |
10〜30 |
10〜30 |
30〜70 |
| total phosphorus (TP) |
10〜50 |
30〜90 |
30〜50 |
|
|
|
Possible Fields of Application of CarbonFiber |
● Environmental water (rivers, lakes and marshes, ponds, sea water)
● City sewage (human excreta purification tanks, advanced wastewater treatment
tanks)
● Factory organic wastewater (food, brewing, chemical industries)
● Livestock organic wastewater (excreta, milking)
● Residential wastewater, kitchen wastewater
|
Features of Water Purification by CarbonFiber |
● Advantages of Water Purification by CarbonFiber
・Fast organic matter decomposition treatment rate by activation of microorganisms.
・Minimal generation of excess sludge, and minimal peeling off of attached
matter.
・Large denitrification and dephosphorization effects.
・High suspended particle capture effect.
・Low installation cost, easy maintenance control, and no running costs.
● Points Requiring Consideration in Water Purification by CarbonFiber
・Difficult to produce effects in environments with few microorganisms,
and time is required.
→ Countermeasure：Seed microorganisms
・Effect is reduced by deposits of excess sludge, e.g., skeletons of
microorganisms, etc.
→ Countermeasure：Maintenance control
・Aerobic bacteria are not activated in oxygen-poor environments.
→ Countermeasure：Aeration equipment
・When no water flow exists, purification is not possible because pollutants do not come into contact
with microorganisms.
→ Countermeasure：Circulating water flow
・When a large amount of pollutants is adsorbed, time is required for
decomposition.
→ Countermeasure：Maintenance control
”Large effects are achieved by activation of microorganisms
with appropriate oxygen and water flow.”
|
Features of Microorganism Groups Fixed on CarbonFiber |
● Microorganism fixing rate is fast, and the amount fixed is large.
● Deposited microorganisms resist peeling off, and at the same time, their
activity is high.
● Within the groups of microorganisms deposited on the fibers, the aerobic
microorganism phase and anaerobic
microorganism phase exist in a well-dispersed state.
● Microorganisms with high bulk are deposited on CarbonFiber bundles.
A type of pump motion in the moving
water and swaying of CarbonFiber bundles causes mass transfer and accelerates
the decomposition of
pollutants.
● The range of effect is expanded by the coexistence of a microorganism
multiplication action, which is due to
CarbonFiber actvates the initial phase of deposition of aerobic bacteria,
with groups of microorganisms.
Amount of CarbonFiber Installed
The amount installed is calculated based on various conditions, including the shape of the water area, water depth, water quality, flow velocity, residence time, etc.
| Location of installation |
Purpose |
Amount of Carbon Fiber g/m³ |
| Pond, lake/marsh, sea |
Water purification |
１０〜１００ |
| River |
Water purification |
１００〜２００ |
| Sewage/factory wastewater |
Water purification |
２００〜６００ |
| Pond, lake/marsh, sea |
Seaweed bed formation |
１０〜２００ |
miracarbon ®
● "miracarbon" is CarbonFiber for water quality purification.
CarbonFiber Water Purification Method
|
Installation Plans |
With CarbonFiber, a large water purification effect can be obtained simply by installing CarbonFiber in water.
However, the manner in which this effect appears differs greatly, depending
on site conditions such as the water
area, water depth, amount of water, water flows, water quality, etc. and
the method of installation and amount of
CarbonFiber installed. In cases where higher cost-effectiveness is required
in water purification, the optimum
installation plan is necessary.
|
Classification of Direct Environmental Water Purification Methods
Using CarbonFiber |
|
Standard CarbonFiber Installation Methods
(Water Purification/Seaweed Bed Formation) |
It is important for miracarbon to swing in water. The way of using is
decided by the purpose, the pollution extent,
and the site situation,･･･etc.
1．HANGING in the water.
2．FIXING in the water.
3．FLOATING in the water.
4．BOTTOM-LAYING in the water.
| Purpose |
Method |
Type |
Attachment method |
Water purification
Seaweed bed formation |
HANGING |
Rope |
･Hanging with Rope type U, I
|
| Rope-Float |
･Hanging with Rope and Floats |
| Raft |
･Hanging with the Raft,
(PVC made, Wood made) |
| Floating island |
･Hanging with the Float-Island,
(Foam material made, Wood made) |
| FIXING |
Frame |
･Fixing with the steel-Frame in the water |
| FLOATING |
Float |
･Floating with floats in the water |
| Bottom sediment decomposition |
BOTTOM-LAYING |
Frame |
･Fixing with the steel-Frame in the water |
| Pile |
･Fixing with the steel-Piles/weights in the water |
Water purification
Seaweed bed formation
Bottom sediment decomposition |
FIXING & BOTTOM-LAYING |
Frame |
･Fixing with the steel-Frame in the water
･Bottom-Laying in the water |
| FLOATING & BOTTOM-LAYING |
Float |
･Floating with floats in the water
･Bottom-Laying in the water |
|
*If only BOTTOM-LAYING is used, water purification is not achieved and
the effect will be small; therefore, a combination of FLOATING + BOTTOM-LAYING
or HANGING + BOTTOM-LAYING is effective.
|
Schematic Diagrams of Installation Methods |
● HANGING Method
● FIXING Method
● FLOATING Method
”Recovering a Beautiful Water Environment with CarbonFiber !”
|
