 CarbonFiber

CarbonFiber artificial seaweed bed system

人工海藻ミラカーボンコンブによる海の森づくり


水質浄化

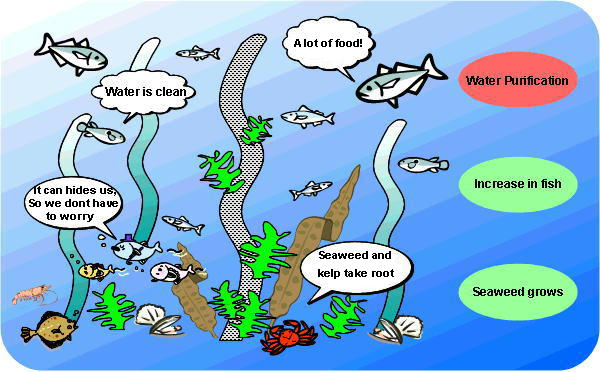

●Pollutants in water are adsorbed on the large surface area of  CarbonFiber. At the same time, microorganisms in water are fixed to CarbonFiber.
 These microorganisms decompose pollutants. CarbonFiber sways in water, capturing and decomposing pollutants, which develops natural water purification system.
●The effect of water purification increases because seaweeds, which increase by CarbonFiber, absorb nutrient salts.
●Since CarbonFiber neither deteriorates nor decomposes,
 its effect persists.

魚が増えます
●CarbonFiber has a positive effect on living organisms, and bacteria and microorganisms, which leads healthy ecosystem. In water-purified environment where microorganisms increase, there is proliferation of planktons and small living organisms. Since these organisms serve as prey for fish, it is expected an increase in the number of fish.
●Fish lays eggs on carbon fibers due to its high biocompatibility, and hiding places made from CarbonFiber and seaweed become habitat for young fish.

海藻が生えます
●Plants enable to photosynthesize, In the water area purified by CarbonFiber. As a result, seaweeds grow proliferously. In addition, because CarbonFiber can be seaweed beds due to its high biocompatibility, it is expected to solve shore-burning and to produce a synergistic effect of water purification with seaweeds.
●Because any seaweed can establish, it's easy to cultivate brown seaweeds and kelps  (e.g. brown seaweeds, kelps, kurome, kajime, sargassum, and common eelgrass)





●"MiraCarbon Kombu" with floats and weights is thrown into the sea.
●Installing MiraCarbon Kombu over a wide area makes sea forest more effectively (more than 100 MiraCarbon kombu recommended).
●Installation can be conducted by 2 - 3 people in small craft in a short time.
●MiraCarbon Kombu can be installed anywhere (e.g. rocky area/ sand area)


維持管理
●Normally, you just need to make a quick inspection.
●Please make a regular check the condition of CarbonFiber and seaweed.
  (It is effective to go under the water when you make a inspection)
●If CarbonFiber becomes less effective due to the absorption  of gross pollutants, removing these materials from them recover its effect.
●In the case of cultivation, caring is required like farming.

注意事項
●Please install carbon fiber in a location where they are not influenced by ocean waves.
 Recommended: The height of a float Less than "sea level of surface- 1m"
●Please add extra weights If there is a possibility that carbon fiber is flown by ocean current.
 Standard: weight 1 kg/ m, Strong current: weight 5kg/m
●Please replace with bigger floats in the case of cultivation.
 Standard: 1kg/m cultivation: 2kg/m

MiraCarbon Kombu Specification


      ■Standard Specification
Model Number L×W Rope
CFHK−2 2m×15cm PE8mm
CFHK−3 3m×15cm PE8mm
CFHK−4 4m×15cm PE8mm

●Length and Width can be customized.
●Weights and floats are optional.
●Please note that specification, size, and
 appearance of the CarbonFibers artificial
 seaweed may change to improve the quality
 without prior notice.
